Products:PTFE Membrane Filter

Posted by:info on 2022-08-26
577
reads

PTFE membrane    Transducer Protector    Supplies for LDAR / TVA disc filter    PTFE/PE Gasket

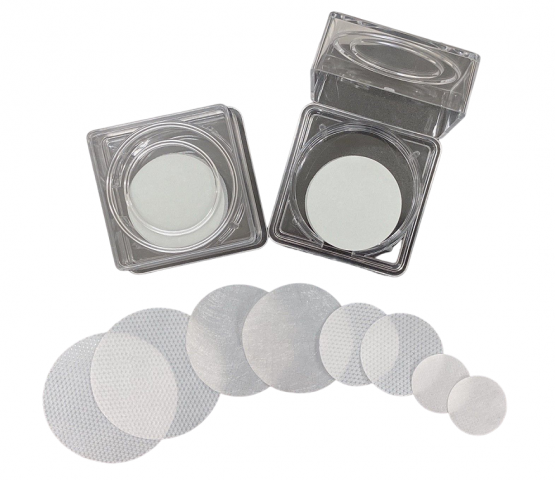

PTFE Membrane Filter


Valueplus_ePTFE圓形過濾膜 (PTFE Membrane Filter)

Specification

  • Type of PTFE membrane: Hydrophobic PTFE, Hydrophilic PTFE

  • Backing Material: PP nonwoven、PP net、PET nonwoven

  • Membrane disc filter diameter: 13mm, 25mm, 47mm, 90mm, 142mm, 293mm, and customized size

  • Membrane with Chemical Compatibility for Aqueous Solutions and Aggressive Solvents.

  • Strong, Chemically Resistant Membranes for Air Monitoring and Sampling in Aggressive Environment.

  • Available by EO sterilization.


Hydrophobic PTFE membrane disc filter

Part Number

Diameter (mm)

Pore size (um)

Package (pcs/box)

HOD-PTFE013D020P

13

0.2

100

HOD-PTFE025D020P

25

0.2

100

HOD-PTFE047D020P

47

0.2

100

HOD-PTFE013D045P

13

0.45

100

HOD-PTFE025D045P

25

0.45

100

HOD-PTFE047D045P

47

0.45

100


Hydrophilic PTFE membrane disc filter

Part Number

Diameter (mm)

Pore size (um)

Package (pcs/box)

HPD-PTFE013D020P

13

0.2

100

HPD-PTFE025D020P

25

0.2

100

HPD-PTFE047D020P

47

0.2

100

HPD-PTFE013D045P

13

0.45

100

HPD-PTFE025D045P

25

0.45

100

HPD-PTFE047D045P

47

0.45

100


Hydrophobic PTFE/PP membrane disc filter

Part Number

Diameter (mm)

Pore size (um)

Package (pcs/box)

HOD-PTFEPP013D010P

13

0.1

50

HOD-PTFEPP013D020P

13

0.2

50

HOD-PTFEPP013D045P

13

0.45

50

HOD-PTFEPP013D100P

13

1

50

HOD-PTFEPP013D300P

13

3

50

HOD-PTFEPP013D500P

13

5

50

HOD-PTFEPP013D1000P

13

10

50

HOD-PTFEPP025D010P

25

0.1

50

HOD-PTFEPP025D020P

25

0.2

50

HOD-PTFEPP025D045P

25

0.45

50

HOD-PTFEPP025D100P

25

1

50

HOD-PTFEPP025D300P

25

3

50

HOD-PTFEPP025D500P

25

5

50

HOD-PTFEPP025D1000P

25

10

50

HOD-PTFEPP047D010P

47

0.1

50

HOD-PTFEPP047D020P

47

0.2

50

HOD-PTFEPP047D045P

47

0.45

50

HOD-PTFEPP047D100P

47

1

50

HOD-PTFEPP047D300P

47

3

50

HOD-PTFEPP047D500P

47

5

50

HOD-PTFEPP047D1000P

47

10

50
